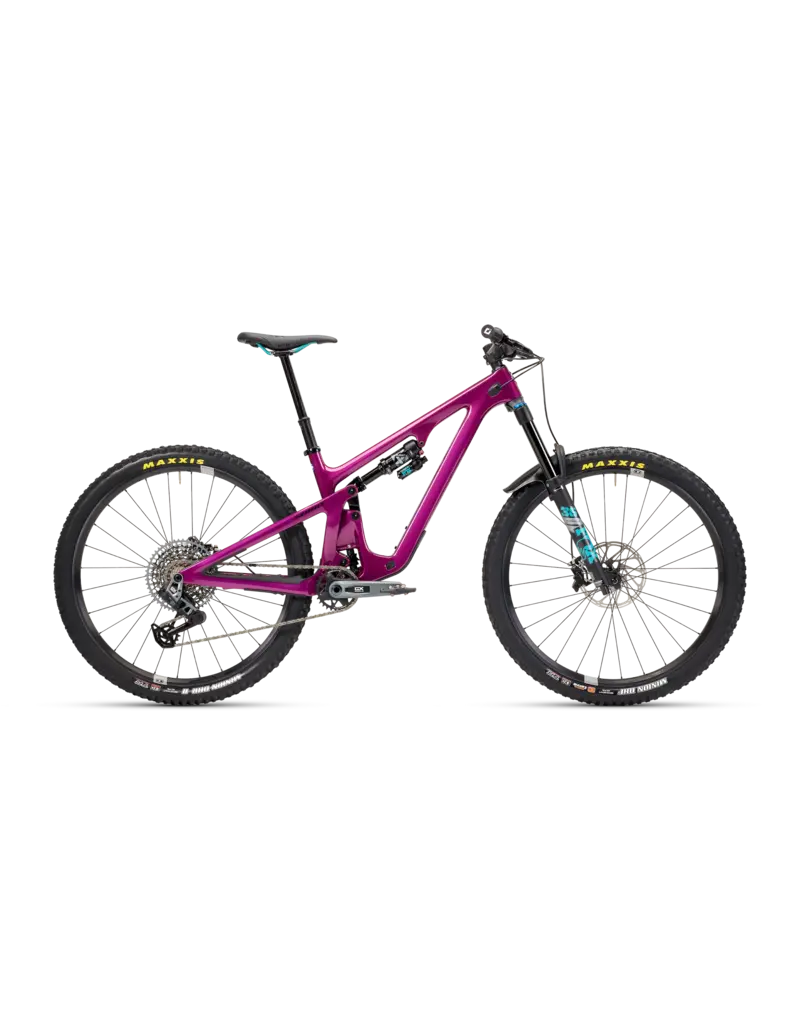

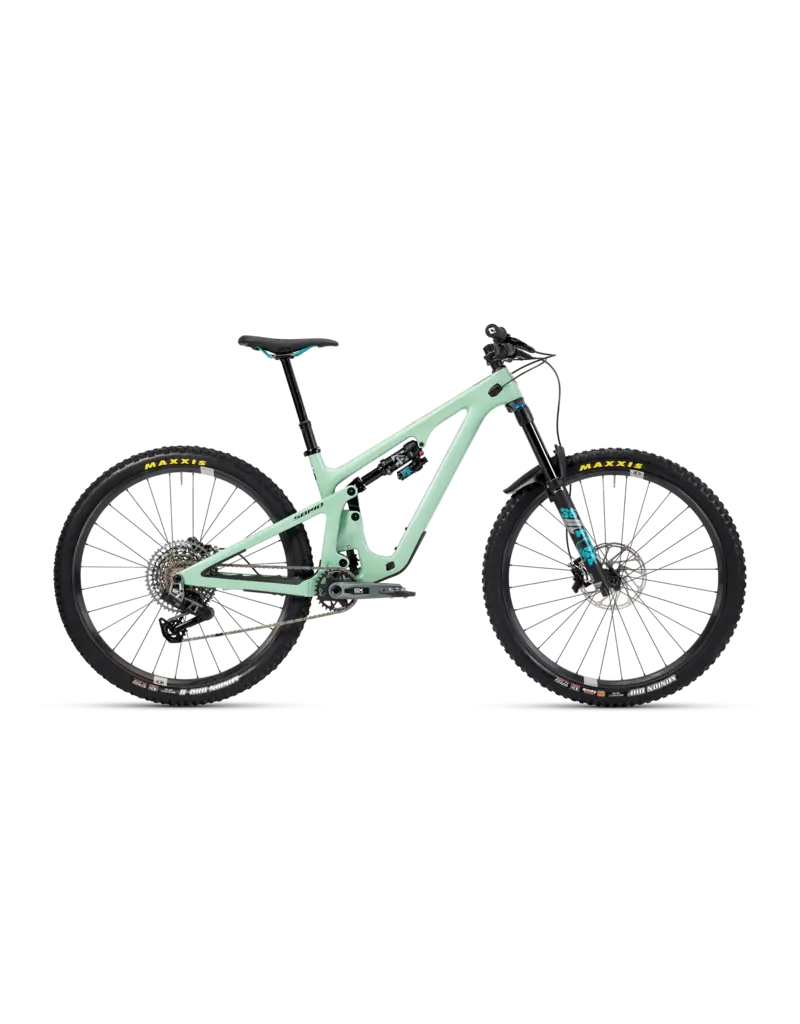

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail, and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.
1. FORWARD BIAS POSTURE
Give racers the room needed to center them on the bike.
2. FRAME REACH FOR RIPPING
Frame reach remains sensibly roomy when running modern short stem lengths, but not ridiculously long to justify a "longer, slacker, lower" claim.
3. SIZE SPECIFIC CHAIN STAYS
Chain stay length increases with frame size, ensuring the rear center of the bike is proportionately correct for riders of all sizes (XS-XXL).
4. SIZE SPECIFIC SEAT TUBE ANGLES
Riders of all sizes stay in a powerful pedal position with seat tube angles that increase with frame size. This makes the transition from seated to standing easier, especially for taller riders.
5. SLIGHTLY HIGHER STACK
A slightly more upright position is more comfortable on big ascents and more capable on big descents. Riders who prefer a more aggressive position can run less stem spacers for a cleaner look.
Frame | C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
---|---|
Fork | Fox Factory Suspension |
Rear Shock | FOX PERFORMANCE FLOAT X |
Wheels | CRANK BROTHERS SYNTHESIS ENDURO 30MM |
Tires | Front: MAXXIS MINION DHF 2.5 EXO Rear: MAXXIS MINION DHR II 2.4 EXO |
Bottom Bracket | SRAM DUB BSA 73 |
Crankset | SRAM GX EAGLE TRANSMISSION 30T 170MM |
Shifters | SRAM AXS POD CONTROLLER |
Rear Derailleur | SRAM GX EAGLE AXS TRANSMISSION |
Cassette/Freewheel | SRAM GX EAGLE TRANSMISSION 10-52 |
Chain | SRAM GX EAGLE TRANSMISSION FLATTOP |
Brakes | SRAM CODE R |
Rotors | SRAM CENTERLINE 200/SRAM CENTERLINE 180 |
Handlebars | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM 30MM RISE |
Tape/Grips | ODI ELITE PRO |
Stem | BURGTEC ENDURO MK3 35X50MM |
Headset | CANE CREEK 40 INTEGRATED |
Seatpost | ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM |
Saddle | SILVERADO CUSTOM |
Pedals | Sold separately |
