Free Yourself

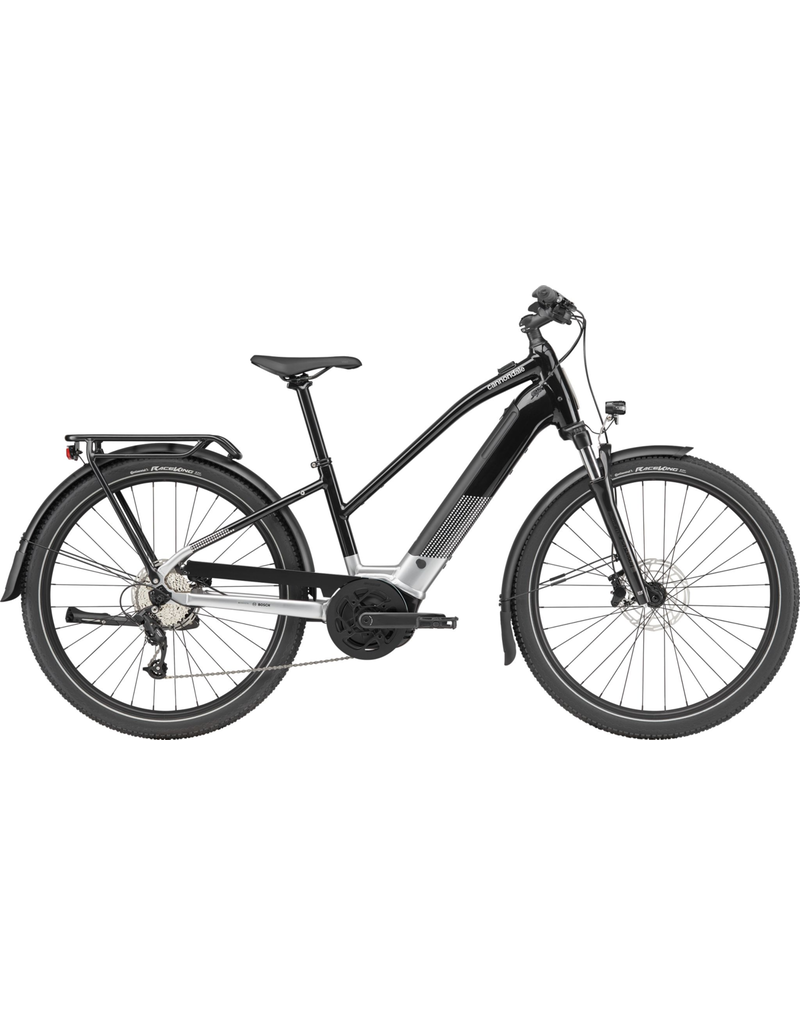

Inside this sporty commuter lies the wild and rugged heart of an explorer. With huge range, robust components and grippy mixed-surface tires, the all-new Tesoro X is built to get you to it all week, and away from it all on the weekend.
Where it thrives
City streets and adventurous backroads
What it's built for
Commuting, touring, exploring
Highlights
- Step-thru SmartForm C2 Alloy frame / bump-smoothing 63mm travel suspension fork
- microSHIFT Marvo 9-speed shifting / Shimano hydraulic disc brakes
- Bosch Smart System - Performance Line 20 mph drive-unit / 500Wh battery / Range: up to 70 mi
Off-road ready
With its stout 63mm travel fork, rattle-free fenders, high-capacity rear rack (Racktime 25kg compatible), bright front and rear lights, wide handlebars and low gearing – the new Tesoro X lives to load up and hit the road… any road, anywhere.
Urban steady
Potholes? Gravel? Tram tracks? No worries. All the features that make Tesoro X so capable off-road translate into a comfortable, confident experience on-road.
Fast and Fun
The upright sportive riding position and impressively precise handling make riding this e-bike a blast, whether you’re dicing it up with city traffic, or carving turns through the mountains, on-road or off.
| Frame | SmartForm C2 Alloy, step-thru, removable 500Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
|---|---|
| Fork | SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset |
| Rims | Alloy, double wall, 32 hole, 25mm internal width, disc-specific |
| Hubs | Front: Shimano MT400B, 110x15mm thru-axle Rear: Shimano UR600, 135QR |
| Spokes | Stainless Steel, 14g |
| Tires | Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG) |
| Crankset | FSA for Bosch |
| Shifters | microSHIFT Marvo XPress M859, trigger style, 9-speed |
| Rear Derailleur | microSHIFT Marvo, 9-speed |
| Cassette/Freewheel | microSHIFT H-Series, 11-36, 9-speed |
| Chain | KMC X9, 9-speed |
| Brakes | Shimano MT400 hydraulic disc, 180/180mm RT30 rotors |
| Brake Levers | Shimano MT400 hydraulic disc |
| Handlebars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm |
| Tape/Grips | Cannondale Ergo Fitness Dual Density, Lock-on |
| Stem | Cannondale 3 with Intellimount, Alloy, 31.8mm clamp |
| Headset | Semi-Integrated, Tapered; 1-1/8"-1-1/2" |
| Seatpost | Cannondale 4, 6061 Alloy, 31.6 |
| Saddle | Selle Royal Vivo Active Ergo with reflective accents |
| Accessories & Extras | Integrated headtube running light, Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders |
| Motor | Bosch Performance Line, Smart System, 20 mph |
| Battery | Bosch PowerTube, 500Wh |
| Controller/Display | Bosch Intuvia w/ LED remote |
| Charger | Bosch 4A |
* Subject to change without notice.
